Description

Creating, editing, printing and listening to tablature and sheet music (standard notation) for guitar and other fretted, stringed instruments. Website.

Appdb.winehq.org

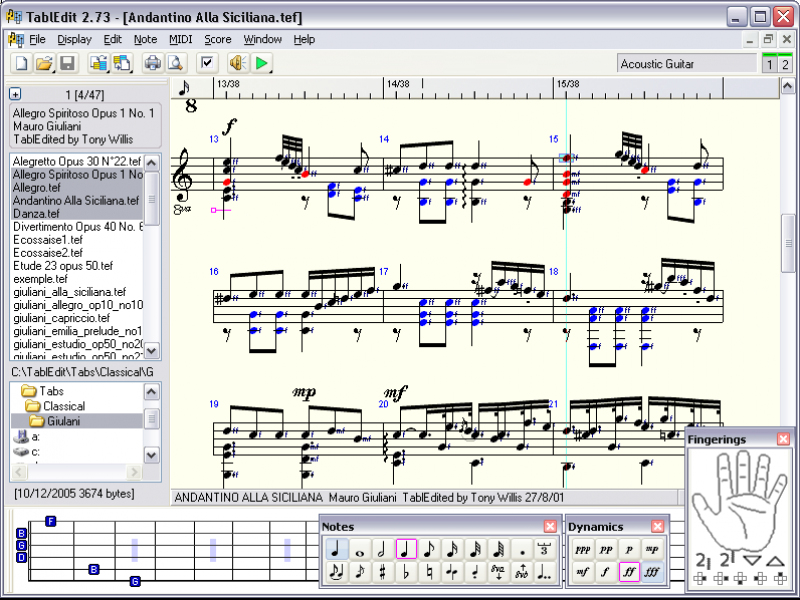

Screenshots

Miniature

Source code

#!/usr/bin/env playonlinux-bash
[ "$PLAYONLINUX" = "" ] && exit 0
source "$PLAYONLINUX/lib/sources"
######################
# created Do 4. Mär 19:07:41 CET 2021
######################
# global parameters
TITLE="TablEdit"
PREFIX="tabledit"
AUTHOR="VolkerFroehlich"
EDITOR="Matthieu Leschemelle"
EDITOR_URL="https://tabledit.com/"
MD5=""
DOWNLOAD_RGSTRED_PATH="https://tabledit.com/secured/tev301.exe"
DOWNLOAD_PREVIEW_PATH="https://tabledit.com/download/tabled32.exe"
EXECUTABLE_FILE="tableditdemo.exe"
# automation parameters
USE_AUTOMATION="0" # 1: do not ask user
USE_REGISTERED_VERSION=0 # 1: use registered version
[ "$USE_REGISTERED_VERSION" = "1" ] && EXECUTABLE_FILE="tabledit.exe"
######################
# FUNCTIONS
# ==============================================================
getRegisteredOrPreview()
# --------------------------------------------------------------
# Ask user for TablEdit registration info.
# We require this for access to the secured download page
# and later to add registration data to the windows registry.
# Store input to variables
#  TE_USR: username
#  TE_PWD: password
# ==============================================================
{
TE_USR="" # with USE_AUTOMATION=1 you can predefine your
TE_PWD="" # tabledit registered user/password here
[ "$USE_AUTOMATION" = "1" ] && return 0
# -------------------
# ask user if registered
MSG="If you do have a user name and password we install the full version, else the preview demo.\n\nAre you a registered user?"
POL_SetupWindow_question "$(eval_gettext '$MSG')" "$TITLE"
POL_Debug_Message "# APP_ANSWER=$APP_ANSWER"
[ "$APP_ANSWER" = "TRUE" ] && USE_REGISTERED_VERSION=1 || USE_REGISTERED_VERSION=0
[ ! "$USE_REGISTERED_VERSION" = "1" ] && return 0 # install preview demo version
# -------------------
# use registered version
EXECUTABLE_FILE="tabledit.exe"
MSG="Username"
POL_SetupWindow_textbox "$(eval_gettext '$MSG')" "$TITLE" "$TE_USR"
[ -z "$APP_ANSWER" ] && return 0
TE_USR="$APP_ANSWER"
MSG="Password"
POL_SetupWindow_textbox "$(eval_gettext '$MSG')" "$TITLE" "$TE_PWD"
[ -z "$APP_ANSWER" ] && TE_USR="" && return 0
TE_PWD="$APP_ANSWER"
[ -z "$TE_USR" ] && POL_Debug_Fatal "# ERROR: User not defined"
[ -z "$TE_PWD" ] && POL_Debug_Fatal "# ERROR: Password not defined"
return 0 # use registered version
}
# ==============================================================
getVersionRemote()
# --------------------------------------------------------------
# check demo download page for latest version info
# and store this in variable
#    VERSION_REMOTE
# ==============================================================
{
POL_Debug_Message "# getVersionRemote"
VERSION_REMOTE=""
# - - - - - - - - - - - - - - - - - - - - -
# download html page for demo version
DOWNLOAD_PATH=$DOWNLOAD_PREVIEW_PATH
DOWNLOAD_DIR=$(dirname "$DOWNLOAD_PATH")
DOWNLOAD_FILE=$(basename "$DOWNLOAD_PATH")
DOWNLOAD_TMP=$POL_System_TmpDir
POL_Debug_Message "# download secured html page ($DOWNLOAD_DIR/$DOWNLOAD_FILE)"
wget -O $DOWNLOAD_TMP/TE_DWLD $DOWNLOAD_DIR/ 2>/dev/null;
RET_VAL="$?"
[ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning \"# download returns non zero value=$RET_VAL\"
[ ! -f "$DOWNLOAD_TMP/TE_DWLD" ] && POL_Debug_Fatal "# ERROR: download demo html page failed"
# - - - - - - - - - - - - - - - - - - - - -
POL_Debug_Message "# analyze HTML page"
VERSION_REMOTE=`fgrep "from Windows" $DOWNLOAD_TMP/TE_DWLD | cut -d "-" -f 2 | cut -d " " -f 2 | cut -d "v" -f 2`
POL_Debug_Message "# VERSION_REMOTE=$VERSION_REMOTE"
}
# ==============================================================
getInstallerLocalDownload()
# --------------------------------------------------------------
# 1. decide if local or download
# 1.1 browse for local installer
# 1.2 download
# 1.2.a registered version
#       .store secured download page locally
#       .analyze page for latest installer
#        This may no longer work if download page logic changes
# 1.2.b demo version
# 2. check installer size is not too small
# ==============================================================
{
POL_Debug_Message "# USER CHOICE: select local or download"
[ "$USE_AUTOMATION" = "1" ] && \
        INSTALL_METHOD="DOWNLOAD" || \
        POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"
if [ "$INSTALL_METHOD" = "LOCAL" ]; then
        MSG="Please select the setup file to run."
        POL_SetupWindow_browse "$(eval_gettext '$MSG')" ""
        INSTALLER="$APP_ANSWER"
elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
        POL_Debug_Message "# download installer"
        if [ "$USE_REGISTERED_VERSION" = "1" ]; then
                # - - - - - - - - - - - - - - - - - - - - -
                # TablEdit registered user - user/password
                [ -z "$TE_USR" ] && POL_Debug_Fatal "# ERROR: user name not set"
                [ -z "$TE_PWD" ] && POL_Debug_Fatal "# ERROR: password not set"
                # - - - - - - - - - - - - - - - - - - - - -
                # download html page for registered version
                DOWNLOAD_PATH=$DOWNLOAD_RGSTRED_PATH
                DOWNLOAD_DIR=$(dirname "$DOWNLOAD_PATH")
                DOWNLOAD_FILE="windows_e.shtml"
                DOWNLOAD_TMP=$POL_System_TmpDir
                POL_Debug_Message "# download secured html page ($DOWNLOAD_DIR/$DOWNLOAD_FILE)"
                wget --user "$TE_USR" --password "$TE_PWD" -O $DOWNLOAD_TMP/TE_DWLD $DOWNLOAD_DIR/$DOWNLOAD_FILE 2>/dev/null;
                RET_VAL="$?"
                [ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning \"# download returns non zero value=$RET_VAL\"
                [ ! -f "$DOWNLOAD_TMP/TE_DWLD" ] && POL_Debug_Fatal "# ERROR: download secured html page failed"
                # - - - - - - - - - - - - - - - - - - - - -
                POL_Debug_Message "# analyze HTML page"
                VERSION_REMOTE=`fgrep "B>TablEdit v" $DOWNLOAD_TMP/TE_DWLD | cut -d " " -f 2 | cut -d "v" -f 2`
                POL_Debug_Message "# installer version=$VERSION_REMOTE"
                DOWNLOAD_FILE=`fgrep "B>TablEdit v" $DOWNLOAD_TMP/TE_DWLD | cut -d '"' -f 2`
                DOWNLOAD_PATH=$DOWNLOAD_DIR/$DOWNLOAD_FILE
                # - - - - - - - - - - - - - - - - - - - - -
                # download secured installer
                POL_Debug_Message "# download the secured installer ($DOWNLOAD_PATH)"
                POL_Debug_Message "# wget -O "$DOWNLOAD_TMP/$DOWNLOAD_FILE" --user=$TE_USR --password=$TE_PWD $DOWNLOAD_PATH"
                wget -O "$DOWNLOAD_TMP/$DOWNLOAD_FILE" --user=$TE_USR --password=$TE_PWD $DOWNLOAD_PATH
                RET_VAL="$?"
                [ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning "# download returns non zero value=$RET_VAL"
                [ ! -f "$DOWNLOAD_TMP/$DOWNLOAD_FILE" ] && POL_Debug_Fatal "# ERROR: download secured installer failed"
                INSTALLER="$DOWNLOAD_TMP/$DOWNLOAD_FILE"
                POL_Debug_Message "# INFO: registered program downloaded to $INSTALLER"
        else
                # - - - - - - - - - - - - - - - - - - - - -
                # download demo installer
                DOWNLOAD_LINK=$DOWNLOAD_PREVIEW_PATH
                DOWNLOAD_FILE=$(basename "$DOWNLOAD_LINK")
                POL_Debug_Message "# download the demo installer ($DOWNLOAD_LINK)"
                POL_Download "$DOWNLOAD_LINK"
                INSTALLER="$POL_System_TmpDir/$DOWNLOAD_FILE"
                POL_Debug_Message "# INFO: demo program downloaded to $INSTALLER"
        fi
fi
if [[ -z "$INSTALLER" || ! -f "$INSTALLER" ]];then
        MSG="ERROR: cannot locate installer >$INSTALLER< for $TITLE."
        POL_Debug_Message "# $MSG"
        POL_SetupWindow_message "$(eval_gettext '$MSG')" "$TITLE"
fi
# ---------------------
# check installer size
file_size_kb=`du -k "$INSTALLER" | cut -f1`
if [ "$file_size_kb" -lt 1000 ]; then
        POL_Debug_Fatal "# ERROR: Installer \(${INSTALLER}\) size \(${file_size_kb kb}\) is too small for a set-up file."
fi
return 0
}
# ==============================================================
registryLanguage()
# --------------------------------------------------------------
# set TablEdit language according to locale
# ==============================================================
{
LANG_VAL=0 # 0 - English (default)
LANG_CUR=`echo $LANG | cut -c 1-2`
[ \"$LANG_CUR\" = \"de\" ] && LANG_VAL=512  # 512 - German
[ \"$LANG_CUR\" = \"fr\" ] && LANG_VAL=256  # 256 - French
[ \"$LANG_CUR\" = \"es\" ] && LANG_VAL=768  # 768 - Spanish
[ \"$LANG_CUR\" = \"jp\" ] && LANG_VAL=1024 # 1024- Janpanese
echo "\"Language\"=\"$LANG_VAL\"" >> $FILE_USRREG
}
# ==============================================================
registryProgram()
# --------------------------------------------------------------
# update registry with user registeration info
# ==============================================================
{
if [ "$USE_REGISTERED_VERSION" = "1" ]; then
        POL_Debug_Message "# INFO: register Password, UserName"
        echo -e "\"UserName\"=\""$TE_USR"\"\n\"Password\"=\""$TE_PWD"\"" >> $FILE_USRREG
        FOUND=`fgrep '\"Password\"' $FILE_USRREG`
        [ ! -z "$FOUND" ] && POL_Debug_Message "# INFO: registered"
fi
}
# ==============================================================
registryWindows()
# --------------------------------------------------------------
# We clean up scattered windows of regular install and
# update registry with user preferences (colors, windows)
# ==============================================================
{
POL_Debug_Message "# INFO: register windows"
echo "\"Colorsv3\"=\"0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x80,0xff,0xdbecec,0xdff0f5,0x0,\"" >> $FILE_USRREG
echo "\"Palette1\"=\"326,76,104,118,0,27,465,28,53,233,20,1,132,0\"" >> $FILE_USRREG
echo "\"Palette2\"=\"597,76,104,118,511,27,465,28,53,233,20,1,132,0\"" >> $FILE_USRREG
echo "\"Palette3\"=\"432,76,104,49,984,27,189,28,53,95,8,1,132,0\"" >> $FILE_USRREG
echo "\"Palette4\"=\"491,76,104,72,0,219,281,28,53,141,12,1,148,0\"" >> $FILE_USRREG
echo "\"Palette5\"=\"492,173,104,95,885,102,373,28,53,187,16,1,148,0\"" >> $FILE_USRREG
echo "\"Palette6\"=\"706,76,104,141,0,27,101,141,101,141,1,1,148,0\"" >> $FILE_USRREG
echo "\"Palette7\"=\"162,383,551,58,0,637,551,60,553,58,1,1,24,0\"" >> $FILE_USRREG
echo -e "\"ScrOutput\"=\"001001110000=1W1:>899<>7F001P040S@//210000000000\"" >> $FILE_USRREG
}
# ==============================================================
getRegistryExists()
# --------------------------------------------------------------
# check if registry is valid for the installed program
# 0: not existing
# 1: existing
# ==============================================================
{
REGISTRY_EXISTS=0
# ---------------------
# check user.reg exists
FILE_USRREG="$WINEPREFIX/user.reg"
[ ! -f "$FILE_USRREG" ] && POL_Debug_Fatal "# ERROR: file not found $FILE_USRREG"
# ---------------------
# check system.reg exists
FILE_SYSREG="$WINEPREFIX/system.reg"
[ ! -f "$FILE_SYSREG" ] && POL_Debug_Fatal "# ERROR: file not found $FILE_SYSREG"
# ---------------------
# check user.reg key exists
FOUND="`fgrep '\\TablEdit' $FILE_USRREG`"
[ -z "$FOUND" ] && POL_Debug_Message "# WARNING: key \\TablEdit does not yet exist\n(Wine may still need time to flush the file)\n$FILE_USRREG." && return 0
# ---------------------
# return success
REGISTRY_EXISTS=1
return "$REGISTRY_EXISTS"
}
# ==============================================================
waitsec()
# --------------------------------------------------------------
# sleep function with some debug message
# ==============================================================
{
P1="$1"
[[ -z "$P1" || "$P1" = 0 ]] && return 0
POL_Debug_Message "# let's wait $P1 seconds"
sleep "$P1"
}
# ==============================================================
updateRegistry()
# --------------------------------------------------------------
# update registry with some program settings
# color, windows position, user registration info, language
# The installers registry values do need time to show.
# So, if we do not find them, let's wait a while.
# ==============================================================
{
# - - - - - - - - - - - - - -
# validate registry exists
REGISTRY_EXISTS=0
getRegistryExists
typeset -i iCount=0 iMax=4
while [[ "$REGISTRY_EXISTS" = 0 && $iCount -lt $iMax ]]; do
        iCount=iCount+1
        POL_Debug_Message "# WARNING: waiting for registry $iCount"
        waitsec 4
        getRegistryExists
done
[ "$REGISTRY_EXISTS" = 0 ] && POL_Debug_Message "# WARNING: getRegistryExists - returned 0"
FILE_USRREG="$WINEPREFIX/user.reg"
# - - - - - - - - - - - - - -
# add to registry: Password, UserName, Windows, Language
POL_Debug_Message "# INFO: add registy keys Software\\\\\\\\TablEdit"
echo "[Software\\\\\\\\TablEdit\\\\\\\\TablEdit]" >> $FILE_USRREG
registryProgram
registryWindows
registryLanguage
echo -e "\n" >> $FILE_USRREG
}
# ==============================================================
getVersion()
# --------------------------------------------------------------
# read installed version from system.reg
# if not found, retry some times, then get remote version
# ==============================================================
{
REGISTRY_EXISTS=0
# ----------------------------------
# validate registry
getRegistryExists
typeset -i iCount=0 iMax=4
while [[ "$REGISTRY_EXISTS" = 0 && $iCount -lt $iMax ]]; do
        iCount=iCount+1
        POL_Debug_Message "# WARNING: waiting for registry $iCount"
        waitsec 4
        getRegistryExists
done
[ "$REGISTRY_EXISTS" = 0 ] && POL_Debug_Message "# WARNING: getRegistryExists returned 0"
# ----------------------------------
# get Version Info from system.reg
cd "$WINEPREFIX" || POL_Debug_Fatal "# ERROR: Unable to change directory"
RESULT1=`fgrep -A 1 '"DisplayName"="TablEdit' system.reg  | grep -A 0 '"DisplayVersion"' `
[ ! -z "$RESULT1" ] && VERSION_INSTALLED=`echo $RESULT1 | cut -d '"' -f 4 `
if [ -z "$VERSION_INSTALLED" ]; then
# ----------------------------------
# get remote Version
        POL_Debug_Warning "# WARNING: 'DisplayVersion TablEdit' not found in system.reg"
        getVersionRemote
        POL_Debug_Warning "# WARNING: using remote demo version ($VERSION_REMOTE) as a fallback"
        VERSION_INSTALLED="$VERSION_REMOTE"
fi
# POL_Debug_Message "# VERSION_INSTALLED=$VERSION_INSTALLED"
# VER_LEN="${#VERSION_INSTALLED}"
# POL_Debug_Message "# LEN=$VER_LEN"
}
# ==============================================================
createShortcut()
# --------------------------------------------------------------
# 1. get installed version
# 2. remove previous desktop starter
# 3. remove previous POL shortcut
# 4. add POL shortcut with version info
# 5. add timidity to POL shortcut
# ==============================================================
{
# -------------------
POL_Debug_Message "# get program version"
getVersion
POL_Debug_Message "# VERSION_INSTALLED: $VERSION_INSTALLED"
LAUNCHER="$TITLE"
[ ! -z "$VERSION_INSTALLED" ] && LAUNCHER="$LAUNCHER-v$VERSION_INSTALLED"
POL_Debug_Message "# LAUNCHER: $LAUNCHER"
# -------------------
PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$LAUNCHER"
if [ ! -f "$PATH_SHORTCUT" ];then
        # -------------------
        POL_Debug_Message "# remove any previous desktop starter"
        LINUX_DESKTOP=`xdg-user-dir DESKTOP`
        PATH_SHORTCUT="$LINUX_DESKTOP/$TITLE"
        rm -r "$PATH_SHORTCUT"* 2>/dev/null;
        rm -r $HOME/.local/share/applications/*$TITLE* 2>/dev/null;
        # -------------------
        POL_Debug_Message "# remove previous POL shortcut"
        PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$TITLE"
        rm -r "$PATH_SHORTCUT"* 2>/dev/null;
        # -------------------
        POL_Debug_Message "# create POL shortcut"
        POL_Shortcut "$EXECUTABLE_FILE" "$LAUNCHER" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
        # -------------------
        PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$LAUNCHER"
fi
[ -f "$PATH_SHORTCUT" ] && MSG="$LAUNCHER installation ok" && POL_Debug_Message "# $MSG"
# ===================
# Add timidity to POL shortcut
POL_Debug_Message "# Adding TiMidity to POL shortcut $PATH_SHORTCUT"
TIMIDITY_APP=`which timidity`
[ -z "$TIMIDITY_APP" ] && POL_Debug_Warning "# no timidity found" && return -1
if [ -z "`fgrep timidity $PATH_SHORTCUT`" ];then
        STARTTIMIDITY="[ -z \"\`pstree | grep timidity\`\" ] \&\& timidity -iA -B2,8 -Os1l -s 44100 \&"
        echo "s+POL_Wine*+$STARTTIMIDITY\nPOL_Wine+g" > $POL_System_TmpDir/SED_CMD
        sed -i -f $POL_System_TmpDir/SED_CMD $PATH_SHORTCUT
fi
return 0
}
######################
# MAIN
IMAGE_TOP="https://tabledit.com/css/img/header1.jpg"
IMAGE_LEFT="https://tabledit.com/ios/TEFpad.ios.logo.175x175-75.jpg"
POL_GetSetupImages --force  "$IMAGE_TOP" "$IMAGE_LEFT" "$TITLE"
POL_SetupWindow_Init
POL_Debug_Init
POL_Debug_Message "# show POL Window"
POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
Set_OS "win7"
# ---------------------
POL_Debug_Message "# create PREFIX environment"
POL_Wine_SelectPrefix "$PREFIX"
POL_System_SetArch "x86"
POL_Wine_PrefixCreate
Set_OS "win7"
POL_System_TmpCreate "$PREFIX"
PWD_OLD=`pwd`
cd "$POL_System_TmpDir" || POL_Debug_Fatal "# ERROR: Unable to change directory"
POL_Debug_Message "# WINEPREFIX: $WINEPREFIX"
POL_Debug_Message "# PREFIX: $PREFIX"
POL_Debug_Message "# POL_System_TmpDir: $POL_System_TmpDir"
# ===================
POL_Debug_Message "# USER CHOICE: registered or preview"
getRegisteredOrPreview
# ---------------------
POL_Debug_Message "# get Installer local or download"
getInstallerLocalDownload
# ===================
POL_Debug_Message "# check TiMidity is available"
TIMIDITY_APP=`which timidity`
if [ -z "$TIMIDITY_APP" ];then
        MSG="For $TITLE to run, we recommend you install TiMidity on your system first.\nPlease open a terminal and execute this command line:\n
        sudo apt-get -y install timidity\n\nThen continue or restart this POL installation.\n"
        POL_SetupWindow_message "$(eval_gettext '$MSG')"
fi
# ===================
POL_Debug_Message "# start wine installation ("$INSTALLER")"
MSG="Installation in progress."
POL_SetupWindow_wait "$(eval_gettext '$MSG')" ""
POL_Wine "$INSTALLER"
POL_Debug_Message "# confirm the executable - tabledit.exe or tableditdemo.exe exists"
FOUND=`find $WINEPREFIX -name "$EXECUTABLE_FILE" -print`
[ -z "$FOUND" ] && POL_Debug_Fatal "# ERROR: $EXECUTABLE_FILE not found in $WINEPREFIX"
# ===================
POL_Debug_Message "# finalize installation"
updateRegistry
createShortcut
POL_System_TmpDelete
POL_SetupWindow_Close
exit

Contributions

Filters:

Contribute
Member Message
bob234 Monday 1 August 2022 at 21:59
bob234 Anonymous

Message

Hello, I tried to install this on my system (Manjaro linux, kernel: 5.10.133-1-MANJARO) and it crashes on launch with the following error:

[08/01/22 21:35:54] - Running wine- tableditdemo.exe (Working directory : /home/bob/.PlayOnLinux/wineprefix/tabledit/drive_c/Program Files/TablEdit)
0024:fixme:ntdll:NtQuerySystemInformation info_class SYSTEM_PERFORMANCE_INFORMATION
0024:fixme:imm:ImeSetActiveContext (00010098, 1): stub
0024:fixme:imm:ImmReleaseContext (00010092, 00010098): stub
00c8:fixme:imm:ImeSetActiveContext (00010026, 0): stub
00c8:fixme:imm:ImmReleaseContext (00010020, 00010026): stub
wine: Unhandled page fault on write access to 00000000 at address 68708373 (thread 0024), starting debugger...
010c:fixme:imm:ImeSetActiveContext (0001010E, 1): stub
010c:fixme:imm:ImmReleaseContext (00010118, 0001010E): stub



Any idea what could be the cause?

Replies

VolkerFroehlich
Tuesday 27 September 2022 at 9:41
Hi Bob234,
I do not have a swift solution for you, but... will investigate on my side, which will take quite some time.
In the meantime I can provide some guidance what you may want to check on your system.
Each POL install script will depend on the underlying fundamentals:
1. POL - PlayOnLinux with the Install script
2. Windows installer (.msi or .exe) - here "tableditdemo.exe".
3. Wine
4. the Linux distro - here MANJARO
To drill deeper and find out which component is the root cause for a crash is quite complex.
And, in order to analyze a crash you need to address all 4 elements one after each other and then in combination.
In your case, the POL script has downloaded the Windows installer successfully and then fails; i.e. Wine crashes during it's execution.
So, the root-cause may be caused by the versions of wine and/or your distro.
If you are interested and the issue persists I'll share some steps to analyze.
VolkerFroehlich
Sunday 9 October 2022 at 19:47
Hi Bob234,
in order to circle in on your issue(s), I have installed Manjaro (Manjaro Linux; Build-ID: rolling; Gnome-Version: 42.4) in a virtual box.
Then, looking at my list above, there may be a problem with (1), as POL is not officially supported under Manjaro and only available as AUR (Arc Linux User Repository). Therefore I entered these commands in a terminal:
sudo pamac build playonlinux
sudo pacman -S timidity
Then I did run playonlinux 4 and TablEdit was successfully installed.

Please tell me more about what issue you have encountered.
VolkerFroehlich Thursday 4 March 2021 at 20:27
VolkerFroehlich

Information

This update has been approved by the team.

logo Try this update

Message

Dear Musicians,

This new POL TablEdit installer adds quite some convenience:
- download the latest program version / no hard-coded version info
- works for demo preview and secured set-up (if username/password is provided) for registered TablEdit users
- allows selection of local set-up file
- shows TablEdit logo on POL screens
- adds version info to the (desktop and POL) launcher name
- adds TiMidity software synthesizer to launcher (required on Linux)
- updates registry after installation (register user, arrange user interface, language)
- deals robust with registry flaw of delayed visibility of TablEdit values post-installation.
  (Here one assumption is, that wine still needs time to flush the file buffer, but I refrained from digging deeper into this behaviour.)
- provides for automated installation bypassing user interaction as far as possible (only for expert users: USE_AUTOMATION=1)

Have fun!

Volker Fröhlich!



Differences

@@ -1,107 +1,413 @@
 #!/usr/bin/env playonlinux-bash
-# Date : (2020-08-17 23:57)
-# Last revision : (2020-08-19 17:20)
-# Wine version used : 5.0.2
-# Distribution used to test : Ubuntu 19.10, 20.04.1 LTS
-# Author : VolkerFröhlich
-# PlayOnLinux : 4.3.4
-# Script licence : GPL3
-# Program licence : Free/Retail
 [ "$PLAYONLINUX" = "" ] && exit 0
 source "$PLAYONLINUX/lib/sources"
-
-TITLE="TablEdit3"
-
-PREFIX="tabledit3"
-AUTHOR="VolkerFröhlich"
+######################
+# created Do 4. Mär 19:07:41 CET 2021
+######################
+# global parameters
+TITLE="TablEdit"
+PREFIX="tabledit"
+AUTHOR="VolkerFroehlich"
 EDITOR="Matthieu Leschemelle"
 EDITOR_URL="https://tabledit.com/"
-
-EXECUTABLE_FILE="tableditdemo.exe"
 MD5=""
-
-# Starting the script
+DOWNLOAD_RGSTRED_PATH="https://tabledit.com/secured/tev301.exe"
+DOWNLOAD_PREVIEW_PATH="https://tabledit.com/download/tabled32.exe"
+EXECUTABLE_FILE="tableditdemo.exe"
+# automation parameters
+USE_AUTOMATION="0" # 1: do not ask user
+USE_REGISTERED_VERSION=0 # 1: use registered version
+[ "$USE_REGISTERED_VERSION" = "1" ] && EXECUTABLE_FILE="tabledit.exe"
+######################
+# FUNCTIONS
+# ==============================================================
+getRegisteredOrPreview()
+# --------------------------------------------------------------
+# Ask user for TablEdit registration info.
+# We require this for access to the secured download page
+# and later to add registration data to the windows registry.
+# Store input to variables
+#  TE_USR: username
+#  TE_PWD: password
+# ==============================================================
+{
+TE_USR="" # with USE_AUTOMATION=1 you can predefine your
+TE_PWD="" # tabledit registered user/password here
+[ "$USE_AUTOMATION" = "1" ] && return 0
+# -------------------
+# ask user if registered
+MSG="If you do have a user name and password we install the full version, else the preview demo.\n\nAre you a registered user?"
+POL_SetupWindow_question "$(eval_gettext '$MSG')" "$TITLE"
+POL_Debug_Message "# APP_ANSWER=$APP_ANSWER"
+[ "$APP_ANSWER" = "TRUE" ] && USE_REGISTERED_VERSION=1 || USE_REGISTERED_VERSION=0
+[ ! "$USE_REGISTERED_VERSION" = "1" ] && return 0 # install preview demo version
+# -------------------
+# use registered version
+EXECUTABLE_FILE="tabledit.exe"
+MSG="Username"
+POL_SetupWindow_textbox "$(eval_gettext '$MSG')" "$TITLE" "$TE_USR"
+[ -z "$APP_ANSWER" ] && return 0
+TE_USR="$APP_ANSWER"
+MSG="Password"
+POL_SetupWindow_textbox "$(eval_gettext '$MSG')" "$TITLE" "$TE_PWD"
+[ -z "$APP_ANSWER" ] && TE_USR="" && return 0
+TE_PWD="$APP_ANSWER"
+[ -z "$TE_USR" ] && POL_Debug_Fatal "# ERROR: User not defined"
+[ -z "$TE_PWD" ] && POL_Debug_Fatal "# ERROR: Password not defined"
+return 0 # use registered version
+}
+# ==============================================================
+getVersionRemote()
+# --------------------------------------------------------------
+# check demo download page for latest version info
+# and store this in variable
+#    VERSION_REMOTE
+# ==============================================================
+{
+POL_Debug_Message "# getVersionRemote"
+VERSION_REMOTE=""
+# - - - - - - - - - - - - - - - - - - - - -
+# download html page for demo version
+DOWNLOAD_PATH=$DOWNLOAD_PREVIEW_PATH
+DOWNLOAD_DIR=$(dirname "$DOWNLOAD_PATH")
+DOWNLOAD_FILE=$(basename "$DOWNLOAD_PATH")
+DOWNLOAD_TMP=$POL_System_TmpDir
+POL_Debug_Message "# download secured html page ($DOWNLOAD_DIR/$DOWNLOAD_FILE)"
+wget -O $DOWNLOAD_TMP/TE_DWLD $DOWNLOAD_DIR/ 2>/dev/null;
+RET_VAL="$?"
+[ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning \"# download returns non zero value=$RET_VAL\"
+[ ! -f "$DOWNLOAD_TMP/TE_DWLD" ] && POL_Debug_Fatal "# ERROR: download demo html page failed"
+# - - - - - - - - - - - - - - - - - - - - -
+POL_Debug_Message "# analyze HTML page"
+VERSION_REMOTE=`fgrep "from Windows" $DOWNLOAD_TMP/TE_DWLD | cut -d "-" -f 2 | cut -d " " -f 2 | cut -d "v" -f 2`
+POL_Debug_Message "# VERSION_REMOTE=$VERSION_REMOTE"
+}
+# ==============================================================
+getInstallerLocalDownload()
+# --------------------------------------------------------------
+# 1. decide if local or download
+# 1.1 browse for local installer
+# 1.2 download
+# 1.2.a registered version
+#       .store secured download page locally
+#       .analyze page for latest installer
+#        This may no longer work if download page logic changes
+# 1.2.b demo version
+# 2. check installer size is not too small
+# ==============================================================
+{
+POL_Debug_Message "# USER CHOICE: select local or download"
+[ "$USE_AUTOMATION" = "1" ] && \
+	INSTALL_METHOD="DOWNLOAD" || \
+	POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"
+if [ "$INSTALL_METHOD" = "LOCAL" ]; then
+	MSG="Please select the setup file to run."
+	POL_SetupWindow_browse "$(eval_gettext '$MSG')" ""
+	INSTALLER="$APP_ANSWER"
+elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
+	POL_Debug_Message "# download installer"
+	if [ "$USE_REGISTERED_VERSION" = "1" ]; then
+		# - - - - - - - - - - - - - - - - - - - - -
+		# TablEdit registered user - user/password
+		[ -z "$TE_USR" ] && POL_Debug_Fatal "# ERROR: user name not set"
+		[ -z "$TE_PWD" ] && POL_Debug_Fatal "# ERROR: password not set"
+		# - - - - - - - - - - - - - - - - - - - - -
+		# download html page for registered version
+		DOWNLOAD_PATH=$DOWNLOAD_RGSTRED_PATH
+		DOWNLOAD_DIR=$(dirname "$DOWNLOAD_PATH")
+		DOWNLOAD_FILE="windows_e.shtml"
+		DOWNLOAD_TMP=$POL_System_TmpDir
+		POL_Debug_Message "# download secured html page ($DOWNLOAD_DIR/$DOWNLOAD_FILE)"
+		wget --user "$TE_USR" --password "$TE_PWD" -O $DOWNLOAD_TMP/TE_DWLD $DOWNLOAD_DIR/$DOWNLOAD_FILE 2>/dev/null;
+		RET_VAL="$?"
+		[ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning \"# download returns non zero value=$RET_VAL\"
+		[ ! -f "$DOWNLOAD_TMP/TE_DWLD" ] && POL_Debug_Fatal "# ERROR: download secured html page failed"
+		# - - - - - - - - - - - - - - - - - - - - -
+		POL_Debug_Message "# analyze HTML page"
+		VERSION_REMOTE=`fgrep "B>TablEdit v" $DOWNLOAD_TMP/TE_DWLD | cut -d " " -f 2 | cut -d "v" -f 2`
+		POL_Debug_Message "# installer version=$VERSION_REMOTE"
+		DOWNLOAD_FILE=`fgrep "B>TablEdit v" $DOWNLOAD_TMP/TE_DWLD | cut -d '"' -f 2`
+		DOWNLOAD_PATH=$DOWNLOAD_DIR/$DOWNLOAD_FILE
+		# - - - - - - - - - - - - - - - - - - - - -
+		# download secured installer
+		POL_Debug_Message "# download the secured installer ($DOWNLOAD_PATH)"
+		POL_Debug_Message "# wget -O "$DOWNLOAD_TMP/$DOWNLOAD_FILE" --user=$TE_USR --password=$TE_PWD $DOWNLOAD_PATH"
+		wget -O "$DOWNLOAD_TMP/$DOWNLOAD_FILE" --user=$TE_USR --password=$TE_PWD $DOWNLOAD_PATH
+		RET_VAL="$?"
+		[ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning "# download returns non zero value=$RET_VAL"
+		[ ! -f "$DOWNLOAD_TMP/$DOWNLOAD_FILE" ] && POL_Debug_Fatal "# ERROR: download secured installer failed"
+		INSTALLER="$DOWNLOAD_TMP/$DOWNLOAD_FILE"
+		POL_Debug_Message "# INFO: registered program downloaded to $INSTALLER"
+	else
+		# - - - - - - - - - - - - - - - - - - - - -
+		# download demo installer
+		DOWNLOAD_LINK=$DOWNLOAD_PREVIEW_PATH
+		DOWNLOAD_FILE=$(basename "$DOWNLOAD_LINK")
+		POL_Debug_Message "# download the demo installer ($DOWNLOAD_LINK)"
+		POL_Download "$DOWNLOAD_LINK"
+		INSTALLER="$POL_System_TmpDir/$DOWNLOAD_FILE"
+		POL_Debug_Message "# INFO: demo program downloaded to $INSTALLER"
+	fi
+fi
+if [[ -z "$INSTALLER" || ! -f "$INSTALLER" ]];then
+	MSG="ERROR: cannot locate installer >$INSTALLER< for $TITLE."
+	POL_Debug_Message "# $MSG"
+	POL_SetupWindow_message "$(eval_gettext '$MSG')" "$TITLE"
+fi
+# ---------------------
+# check installer size
+file_size_kb=`du -k "$INSTALLER" | cut -f1`
+if [ "$file_size_kb" -lt 1000 ]; then
+	POL_Debug_Fatal "# ERROR: Installer \(${INSTALLER}\) size \(${file_size_kb kb}\) is too small for a set-up file."
+fi
+return 0
+}
+# ==============================================================
+registryLanguage()
+# --------------------------------------------------------------
+# set TablEdit language according to locale
+# ==============================================================
+{
+LANG_VAL=0 # 0 - English (default)
+LANG_CUR=`echo $LANG | cut -c 1-2`
+[ \"$LANG_CUR\" = \"de\" ] && LANG_VAL=512  # 512 - German
+[ \"$LANG_CUR\" = \"fr\" ] && LANG_VAL=256  # 256 - French
+[ \"$LANG_CUR\" = \"es\" ] && LANG_VAL=768  # 768 - Spanish
+[ \"$LANG_CUR\" = \"jp\" ] && LANG_VAL=1024 # 1024- Janpanese
+echo "\"Language\"=\"$LANG_VAL\"" >> $FILE_USRREG
+}
+# ==============================================================
+registryProgram()
+# --------------------------------------------------------------
+# update registry with user registeration info
+# ==============================================================
+{
+if [ "$USE_REGISTERED_VERSION" = "1" ]; then
+	POL_Debug_Message "# INFO: register Password, UserName"
+	echo -e "\"UserName\"=\""$TE_USR"\"\n\"Password\"=\""$TE_PWD"\"" >> $FILE_USRREG
+	FOUND=`fgrep '\"Password\"' $FILE_USRREG`
+	[ ! -z "$FOUND" ] && POL_Debug_Message "# INFO: registered"
+fi
+}
+# ==============================================================
+registryWindows()
+# --------------------------------------------------------------
+# We clean up scattered windows of regular install and
+# update registry with user preferences (colors, windows)
+# ==============================================================
+{
+POL_Debug_Message "# INFO: register windows"
+echo "\"Colorsv3\"=\"0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x80,0xff,0xdbecec,0xdff0f5,0x0,\"" >> $FILE_USRREG
+echo "\"Palette1\"=\"326,76,104,118,0,27,465,28,53,233,20,1,132,0\"" >> $FILE_USRREG
+echo "\"Palette2\"=\"597,76,104,118,511,27,465,28,53,233,20,1,132,0\"" >> $FILE_USRREG
+echo "\"Palette3\"=\"432,76,104,49,984,27,189,28,53,95,8,1,132,0\"" >> $FILE_USRREG
+echo "\"Palette4\"=\"491,76,104,72,0,219,281,28,53,141,12,1,148,0\"" >> $FILE_USRREG
+echo "\"Palette5\"=\"492,173,104,95,885,102,373,28,53,187,16,1,148,0\"" >> $FILE_USRREG
+echo "\"Palette6\"=\"706,76,104,141,0,27,101,141,101,141,1,1,148,0\"" >> $FILE_USRREG
+echo "\"Palette7\"=\"162,383,551,58,0,637,551,60,553,58,1,1,24,0\"" >> $FILE_USRREG
+echo -e "\"ScrOutput\"=\"001001110000=1W1:>899<>7F001P040S@//210000000000\"" >> $FILE_USRREG
+}
+# ==============================================================
+getRegistryExists()
+# --------------------------------------------------------------
+# check if registry is valid for the installed program
+# 0: not existing
+# 1: existing
+# ==============================================================
+{
+REGISTRY_EXISTS=0
+# ---------------------
+# check user.reg exists
+FILE_USRREG="$WINEPREFIX/user.reg"
+[ ! -f "$FILE_USRREG" ] && POL_Debug_Fatal "# ERROR: file not found $FILE_USRREG"
+# ---------------------
+# check system.reg exists
+FILE_SYSREG="$WINEPREFIX/system.reg"
+[ ! -f "$FILE_SYSREG" ] && POL_Debug_Fatal "# ERROR: file not found $FILE_SYSREG"
+# ---------------------
+# check user.reg key exists
+FOUND="`fgrep '\\TablEdit' $FILE_USRREG`"
+[ -z "$FOUND" ] && POL_Debug_Message "# WARNING: key \\TablEdit does not yet exist\n(Wine may still need time to flush the file)\n$FILE_USRREG." && return 0
+# ---------------------
+# return success
+REGISTRY_EXISTS=1
+return "$REGISTRY_EXISTS"
+}
+# ==============================================================
+waitsec()
+# --------------------------------------------------------------
+# sleep function with some debug message
+# ==============================================================
+{
+P1="$1"
+[[ -z "$P1" || "$P1" = 0 ]] && return 0
+POL_Debug_Message "# let's wait $P1 seconds"
+sleep "$P1"
+}
+# ==============================================================
+updateRegistry()
+# --------------------------------------------------------------
+# update registry with some program settings
+# color, windows position, user registration info, language
+# The installers registry values do need time to show.
+# So, if we do not find them, let's wait a while.
+# ==============================================================
+{
+# - - - - - - - - - - - - - -
+# validate registry exists
+REGISTRY_EXISTS=0
+getRegistryExists
+typeset -i iCount=0 iMax=4
+while [[ "$REGISTRY_EXISTS" = 0 && $iCount -lt $iMax ]]; do
+	iCount=iCount+1
+	POL_Debug_Message "# WARNING: waiting for registry $iCount"
+	waitsec 4
+	getRegistryExists
+done
+[ "$REGISTRY_EXISTS" = 0 ] && POL_Debug_Message "# WARNING: getRegistryExists - returned 0"
+FILE_USRREG="$WINEPREFIX/user.reg"
+# - - - - - - - - - - - - - -
+# add to registry: Password, UserName, Windows, Language
+POL_Debug_Message "# INFO: add registy keys Software\\\\\\\\TablEdit"
+echo "[Software\\\\\\\\TablEdit\\\\\\\\TablEdit]" >> $FILE_USRREG
+registryProgram
+registryWindows
+registryLanguage
+echo -e "\n" >> $FILE_USRREG
+}
+# ==============================================================
+getVersion()
+# --------------------------------------------------------------
+# read installed version from system.reg
+# if not found, retry some times, then get remote version
+# ==============================================================
+{
+REGISTRY_EXISTS=0
+# ----------------------------------
+# validate registry
+getRegistryExists
+typeset -i iCount=0 iMax=4
+while [[ "$REGISTRY_EXISTS" = 0 && $iCount -lt $iMax ]]; do
+	iCount=iCount+1
+	POL_Debug_Message "# WARNING: waiting for registry $iCount"
+	waitsec 4
+	getRegistryExists
+done
+[ "$REGISTRY_EXISTS" = 0 ] && POL_Debug_Message "# WARNING: getRegistryExists returned 0"
+# ----------------------------------
+# get Version Info from system.reg
+cd "$WINEPREFIX" || POL_Debug_Fatal "# ERROR: Unable to change directory"
+RESULT1=`fgrep -A 1 '"DisplayName"="TablEdit' system.reg  | grep -A 0 '"DisplayVersion"' `
+[ ! -z "$RESULT1" ] && VERSION_INSTALLED=`echo $RESULT1 | cut -d '"' -f 4 `
+if [ -z "$VERSION_INSTALLED" ]; then
+# ----------------------------------
+# get remote Version
+	POL_Debug_Warning "# WARNING: 'DisplayVersion TablEdit' not found in system.reg"
+	getVersionRemote
+	POL_Debug_Warning "# WARNING: using remote demo version ($VERSION_REMOTE) as a fallback"
+	VERSION_INSTALLED="$VERSION_REMOTE"
+fi
+# POL_Debug_Message "# VERSION_INSTALLED=$VERSION_INSTALLED"
+# VER_LEN="${#VERSION_INSTALLED}"
+# POL_Debug_Message "# LEN=$VER_LEN"
+}
+# ==============================================================
+createShortcut()
+# --------------------------------------------------------------
+# 1. get installed version
+# 2. remove previous desktop starter
+# 3. remove previous POL shortcut
+# 4. add POL shortcut with version info
+# 5. add timidity to POL shortcut
+# ==============================================================
+{
+# -------------------
+POL_Debug_Message "# get program version"
+getVersion
+POL_Debug_Message "# VERSION_INSTALLED: $VERSION_INSTALLED"
+LAUNCHER="$TITLE"
+[ ! -z "$VERSION_INSTALLED" ] && LAUNCHER="$LAUNCHER-v$VERSION_INSTALLED"
+POL_Debug_Message "# LAUNCHER: $LAUNCHER"
+# -------------------
+PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$LAUNCHER"
+if [ ! -f "$PATH_SHORTCUT" ];then
+	# -------------------
+	POL_Debug_Message "# remove any previous desktop starter"
+	LINUX_DESKTOP=`xdg-user-dir DESKTOP`
+	PATH_SHORTCUT="$LINUX_DESKTOP/$TITLE"
+	rm -r "$PATH_SHORTCUT"* 2>/dev/null;
+	rm -r $HOME/.local/share/applications/*$TITLE* 2>/dev/null;
+	# -------------------
+	POL_Debug_Message "# remove previous POL shortcut"
+	PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$TITLE"
+	rm -r "$PATH_SHORTCUT"* 2>/dev/null;
+	# -------------------
+	POL_Debug_Message "# create POL shortcut"
+	POL_Shortcut "$EXECUTABLE_FILE" "$LAUNCHER" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
+	# -------------------
+	PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$LAUNCHER"
+fi
+[ -f "$PATH_SHORTCUT" ] && MSG="$LAUNCHER installation ok" && POL_Debug_Message "# $MSG"
+# ===================
+# Add timidity to POL shortcut
+POL_Debug_Message "# Adding TiMidity to POL shortcut $PATH_SHORTCUT"
+TIMIDITY_APP=`which timidity`
+[ -z "$TIMIDITY_APP" ] && POL_Debug_Warning "# no timidity found" && return -1
+if [ -z "`fgrep timidity $PATH_SHORTCUT`" ];then
+        STARTTIMIDITY="[ -z \"\`pstree | grep timidity\`\" ] \&\& timidity -iA -B2,8 -Os1l -s 44100 \&"
+        echo "s+POL_Wine*+$STARTTIMIDITY\nPOL_Wine+g" > $POL_System_TmpDir/SED_CMD
+        sed -i -f $POL_System_TmpDir/SED_CMD $PATH_SHORTCUT
+fi
+return 0
+}
+######################
+# MAIN
+IMAGE_TOP="https://tabledit.com/css/img/header1.jpg"
+IMAGE_LEFT="https://tabledit.com/ios/TEFpad.ios.logo.175x175-75.jpg"
+POL_GetSetupImages --force  "$IMAGE_TOP" "$IMAGE_LEFT" "$TITLE"
 POL_SetupWindow_Init
-
-# Starting debugging API
 POL_Debug_Init
-
-#POL_SetupWindow_SetID
-# Open dialogue box
+POL_Debug_Message "# show POL Window"
 POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
 Set_OS "win7"
-POL_System_TmpCreate "$PREFIX"
-
-POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"
-
-cd "$POL_System_TmpDir";
-##############################
-POL_Debug_Message "# select installer"
-if [ "$INSTALL_METHOD" = "LOCAL" ]; then
-	POL_SetupWindow_browse "$(eval_gettext 'Please select the setup file to run.')" "$TITLE"
-	INSTALLER="$APP_ANSWER"
-	POL_Debug_Message "# confirm the executable name"
-	if [ ! "`basename $INSTALLER`" = "tabled32.exe" ]; then
-		EXECUTABLE_FILE="tabledit.exe"
-	fi
-
-elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
-	DOWNLOAD_LINK=https://tabledit.com/download/tabled32.exe
-	DOWNLOAD_FILE=$(basename "https://tabledit.com/download/tabled32.exe")
-	POL_Download "$DOWNLOAD_LINK"
-	INSTALLER="$POL_System_TmpDir/tabled32.exe"
-fi
-
-##############################
-POL_Debug_Message "# Set prefix"
+# ---------------------
+POL_Debug_Message "# create PREFIX environment"
 POL_Wine_SelectPrefix "$PREFIX"
-POL_Debug_Message "# setting WINEARCH to win32"
 POL_System_SetArch "x86"
 POL_Wine_PrefixCreate
-
-##############################
+Set_OS "win7"
+POL_System_TmpCreate "$PREFIX"
+PWD_OLD=`pwd`
+cd "$POL_System_TmpDir" || POL_Debug_Fatal "# ERROR: Unable to change directory"
+POL_Debug_Message "# WINEPREFIX: $WINEPREFIX"
+POL_Debug_Message "# PREFIX: $PREFIX"
+POL_Debug_Message "# POL_System_TmpDir: $POL_System_TmpDir"
+# ===================
+POL_Debug_Message "# USER CHOICE: registered or preview"
+getRegisteredOrPreview
+# ---------------------
+POL_Debug_Message "# get Installer local or download"
+getInstallerLocalDownload
+# ===================
 POL_Debug_Message "# check TiMidity is available"
 TIMIDITY_APP=`which timidity`
 if [ -z "$TIMIDITY_APP" ];then
-	MSG="For $TITLE to run, we recommend you install TiMidity on your system first.\nPlease open a terminal and execute this command line:\n
-	sudo apt-get -y install timidity\n\nThen continue or restart this POL installation.\n"
-	POL_SetupWindow_message "$(eval_gettext '$MSG')"
-fi
-
-##############################
-POL_Debug_Message "# start wine installation"
+        MSG="For $TITLE to run, we recommend you install TiMidity on your system first.\nPlease open a terminal and execute this command line:\n
+        sudo apt-get -y install timidity\n\nThen continue or restart this POL installation.\n"
+        POL_SetupWindow_message "$(eval_gettext '$MSG')"
+fi
+# ===================
+POL_Debug_Message "# start wine installation ("$INSTALLER")"
 MSG="Installation in progress."
-POL_SetupWindow_wait "$(eval_gettext '$MSG')" "$TITLE"
-
+POL_SetupWindow_wait "$(eval_gettext '$MSG')" ""
 POL_Wine "$INSTALLER"
-
-POL_Debug_Message "# confirm the executable exists"
-if [ -z `find $WINEPREFIX -name "$EXECUTABLE_FILE" -print` ]; then
-	POL_Debug_Fatal "$EXECUTABLE_FILE not found in $WINEPREFIX"
-fi
-
-POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
-
-##############################
-# Add timidity to POL shortcut
-TIMIDITY_APP=`which timidity`
-if [ ! -z "$TIMIDITY_APP" ];then
-	POL_TITLE_PATH="$POL_USER_ROOT/shortcuts/$TITLE"
-	POL_Debug_Message "# Adding TiMidity to POL shortcut $POL_TITLE_PATH"
-	if [ ! -f "$POL_TITLE_PATH" ];then
-		POL_Debug_Warning "file not found: $POL_TITLE_PATH"
-	else
-		if [ -z "`fgrep timidity $POL_TITLE_PATH`" ];then
-			STARTTIMIDITY="[ -z \"\`pstree | grep timidity\`\" ] \&\& timidity -iA -B2,8 -Os1l -s 44100 \&"
-			echo "s+POL_Wine*+$STARTTIMIDITY\nPOL_Wine+g" > $POL_System_TmpDir/SED_CMD
-			sed -i -f $POL_System_TmpDir/SED_CMD $POL_TITLE_PATH
-		fi
-	fi
-fi
-
-##############################
-POL_Debug_Message "# delete temp directory"
+POL_Debug_Message "# confirm the executable - tabledit.exe or tableditdemo.exe exists"
+FOUND=`find $WINEPREFIX -name "$EXECUTABLE_FILE" -print`
+[ -z "$FOUND" ] && POL_Debug_Fatal "# ERROR: $EXECUTABLE_FILE not found in $WINEPREFIX"
+# ===================
+POL_Debug_Message "# finalize installation"
+updateRegistry
+createShortcut
 POL_System_TmpDelete
-
 POL_SetupWindow_Close
 exit

New source code

#!/usr/bin/env playonlinux-bash
[ "$PLAYONLINUX" = "" ] && exit 0
source "$PLAYONLINUX/lib/sources"
######################
# created Do 4. Mär 19:07:41 CET 2021
######################
# global parameters
TITLE="TablEdit"
PREFIX="tabledit"
AUTHOR="VolkerFroehlich"
EDITOR="Matthieu Leschemelle"
EDITOR_URL="https://tabledit.com/"
MD5=""
DOWNLOAD_RGSTRED_PATH="https://tabledit.com/secured/tev301.exe"
DOWNLOAD_PREVIEW_PATH="https://tabledit.com/download/tabled32.exe"
EXECUTABLE_FILE="tableditdemo.exe"
# automation parameters
USE_AUTOMATION="0" # 1: do not ask user
USE_REGISTERED_VERSION=0 # 1: use registered version
[ "$USE_REGISTERED_VERSION" = "1" ] && EXECUTABLE_FILE="tabledit.exe"
######################
# FUNCTIONS
# ==============================================================
getRegisteredOrPreview()
# --------------------------------------------------------------
# Ask user for TablEdit registration info.
# We require this for access to the secured download page
# and later to add registration data to the windows registry.
# Store input to variables
#  TE_USR: username
#  TE_PWD: password
# ==============================================================
{
TE_USR="" # with USE_AUTOMATION=1 you can predefine your
TE_PWD="" # tabledit registered user/password here
[ "$USE_AUTOMATION" = "1" ] && return 0
# -------------------
# ask user if registered
MSG="If you do have a user name and password we install the full version, else the preview demo.\n\nAre you a registered user?"
POL_SetupWindow_question "$(eval_gettext '$MSG')" "$TITLE"
POL_Debug_Message "# APP_ANSWER=$APP_ANSWER"
[ "$APP_ANSWER" = "TRUE" ] && USE_REGISTERED_VERSION=1 || USE_REGISTERED_VERSION=0
[ ! "$USE_REGISTERED_VERSION" = "1" ] && return 0 # install preview demo version
# -------------------
# use registered version
EXECUTABLE_FILE="tabledit.exe"
MSG="Username"
POL_SetupWindow_textbox "$(eval_gettext '$MSG')" "$TITLE" "$TE_USR"
[ -z "$APP_ANSWER" ] && return 0
TE_USR="$APP_ANSWER"
MSG="Password"
POL_SetupWindow_textbox "$(eval_gettext '$MSG')" "$TITLE" "$TE_PWD"
[ -z "$APP_ANSWER" ] && TE_USR="" && return 0
TE_PWD="$APP_ANSWER"
[ -z "$TE_USR" ] && POL_Debug_Fatal "# ERROR: User not defined"
[ -z "$TE_PWD" ] && POL_Debug_Fatal "# ERROR: Password not defined"
return 0 # use registered version
}
# ==============================================================
getVersionRemote()
# --------------------------------------------------------------
# check demo download page for latest version info
# and store this in variable
#    VERSION_REMOTE
# ==============================================================
{
POL_Debug_Message "# getVersionRemote"
VERSION_REMOTE=""
# - - - - - - - - - - - - - - - - - - - - -
# download html page for demo version
DOWNLOAD_PATH=$DOWNLOAD_PREVIEW_PATH
DOWNLOAD_DIR=$(dirname "$DOWNLOAD_PATH")
DOWNLOAD_FILE=$(basename "$DOWNLOAD_PATH")
DOWNLOAD_TMP=$POL_System_TmpDir
POL_Debug_Message "# download secured html page ($DOWNLOAD_DIR/$DOWNLOAD_FILE)"
wget -O $DOWNLOAD_TMP/TE_DWLD $DOWNLOAD_DIR/ 2>/dev/null;
RET_VAL="$?"
[ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning \"# download returns non zero value=$RET_VAL\"
[ ! -f "$DOWNLOAD_TMP/TE_DWLD" ] && POL_Debug_Fatal "# ERROR: download demo html page failed"
# - - - - - - - - - - - - - - - - - - - - -
POL_Debug_Message "# analyze HTML page"
VERSION_REMOTE=`fgrep "from Windows" $DOWNLOAD_TMP/TE_DWLD | cut -d "-" -f 2 | cut -d " " -f 2 | cut -d "v" -f 2`
POL_Debug_Message "# VERSION_REMOTE=$VERSION_REMOTE"
}
# ==============================================================
getInstallerLocalDownload()
# --------------------------------------------------------------
# 1. decide if local or download
# 1.1 browse for local installer
# 1.2 download
# 1.2.a registered version
#       .store secured download page locally
#       .analyze page for latest installer
#        This may no longer work if download page logic changes
# 1.2.b demo version
# 2. check installer size is not too small
# ==============================================================
{
POL_Debug_Message "# USER CHOICE: select local or download"
[ "$USE_AUTOMATION" = "1" ] && \
        INSTALL_METHOD="DOWNLOAD" || \
        POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"
if [ "$INSTALL_METHOD" = "LOCAL" ]; then
        MSG="Please select the setup file to run."
        POL_SetupWindow_browse "$(eval_gettext '$MSG')" ""
        INSTALLER="$APP_ANSWER"
elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
        POL_Debug_Message "# download installer"
        if [ "$USE_REGISTERED_VERSION" = "1" ]; then
                # - - - - - - - - - - - - - - - - - - - - -
                # TablEdit registered user - user/password
                [ -z "$TE_USR" ] && POL_Debug_Fatal "# ERROR: user name not set"
                [ -z "$TE_PWD" ] && POL_Debug_Fatal "# ERROR: password not set"
                # - - - - - - - - - - - - - - - - - - - - -
                # download html page for registered version
                DOWNLOAD_PATH=$DOWNLOAD_RGSTRED_PATH
                DOWNLOAD_DIR=$(dirname "$DOWNLOAD_PATH")
                DOWNLOAD_FILE="windows_e.shtml"
                DOWNLOAD_TMP=$POL_System_TmpDir
                POL_Debug_Message "# download secured html page ($DOWNLOAD_DIR/$DOWNLOAD_FILE)"
                wget --user "$TE_USR" --password "$TE_PWD" -O $DOWNLOAD_TMP/TE_DWLD $DOWNLOAD_DIR/$DOWNLOAD_FILE 2>/dev/null;
                RET_VAL="$?"
                [ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning \"# download returns non zero value=$RET_VAL\"
                [ ! -f "$DOWNLOAD_TMP/TE_DWLD" ] && POL_Debug_Fatal "# ERROR: download secured html page failed"
                # - - - - - - - - - - - - - - - - - - - - -
                POL_Debug_Message "# analyze HTML page"
                VERSION_REMOTE=`fgrep "B>TablEdit v" $DOWNLOAD_TMP/TE_DWLD | cut -d " " -f 2 | cut -d "v" -f 2`
                POL_Debug_Message "# installer version=$VERSION_REMOTE"
                DOWNLOAD_FILE=`fgrep "B>TablEdit v" $DOWNLOAD_TMP/TE_DWLD | cut -d '"' -f 2`
                DOWNLOAD_PATH=$DOWNLOAD_DIR/$DOWNLOAD_FILE
                # - - - - - - - - - - - - - - - - - - - - -
                # download secured installer
                POL_Debug_Message "# download the secured installer ($DOWNLOAD_PATH)"
                POL_Debug_Message "# wget -O "$DOWNLOAD_TMP/$DOWNLOAD_FILE" --user=$TE_USR --password=$TE_PWD $DOWNLOAD_PATH"
                wget -O "$DOWNLOAD_TMP/$DOWNLOAD_FILE" --user=$TE_USR --password=$TE_PWD $DOWNLOAD_PATH
                RET_VAL="$?"
                [ "$RET_VAL" -ne "0" ] && echo POL_Debug_Warning "# download returns non zero value=$RET_VAL"
                [ ! -f "$DOWNLOAD_TMP/$DOWNLOAD_FILE" ] && POL_Debug_Fatal "# ERROR: download secured installer failed"
                INSTALLER="$DOWNLOAD_TMP/$DOWNLOAD_FILE"
                POL_Debug_Message "# INFO: registered program downloaded to $INSTALLER"
        else
                # - - - - - - - - - - - - - - - - - - - - -
                # download demo installer
                DOWNLOAD_LINK=$DOWNLOAD_PREVIEW_PATH
                DOWNLOAD_FILE=$(basename "$DOWNLOAD_LINK")
                POL_Debug_Message "# download the demo installer ($DOWNLOAD_LINK)"
                POL_Download "$DOWNLOAD_LINK"
                INSTALLER="$POL_System_TmpDir/$DOWNLOAD_FILE"
                POL_Debug_Message "# INFO: demo program downloaded to $INSTALLER"
        fi
fi
if [[ -z "$INSTALLER" || ! -f "$INSTALLER" ]];then
        MSG="ERROR: cannot locate installer >$INSTALLER< for $TITLE."
        POL_Debug_Message "# $MSG"
        POL_SetupWindow_message "$(eval_gettext '$MSG')" "$TITLE"
fi
# ---------------------
# check installer size
file_size_kb=`du -k "$INSTALLER" | cut -f1`
if [ "$file_size_kb" -lt 1000 ]; then
        POL_Debug_Fatal "# ERROR: Installer \(${INSTALLER}\) size \(${file_size_kb kb}\) is too small for a set-up file."
fi
return 0
}
# ==============================================================
registryLanguage()
# --------------------------------------------------------------
# set TablEdit language according to locale
# ==============================================================
{
LANG_VAL=0 # 0 - English (default)
LANG_CUR=`echo $LANG | cut -c 1-2`
[ \"$LANG_CUR\" = \"de\" ] && LANG_VAL=512  # 512 - German
[ \"$LANG_CUR\" = \"fr\" ] && LANG_VAL=256  # 256 - French
[ \"$LANG_CUR\" = \"es\" ] && LANG_VAL=768  # 768 - Spanish
[ \"$LANG_CUR\" = \"jp\" ] && LANG_VAL=1024 # 1024- Janpanese
echo "\"Language\"=\"$LANG_VAL\"" >> $FILE_USRREG
}
# ==============================================================
registryProgram()
# --------------------------------------------------------------
# update registry with user registeration info
# ==============================================================
{
if [ "$USE_REGISTERED_VERSION" = "1" ]; then
        POL_Debug_Message "# INFO: register Password, UserName"
        echo -e "\"UserName\"=\""$TE_USR"\"\n\"Password\"=\""$TE_PWD"\"" >> $FILE_USRREG
        FOUND=`fgrep '\"Password\"' $FILE_USRREG`
        [ ! -z "$FOUND" ] && POL_Debug_Message "# INFO: registered"
fi
}
# ==============================================================
registryWindows()
# --------------------------------------------------------------
# We clean up scattered windows of regular install and
# update registry with user preferences (colors, windows)
# ==============================================================
{
POL_Debug_Message "# INFO: register windows"
echo "\"Colorsv3\"=\"0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x80,0xff,0xdbecec,0xdff0f5,0x0,\"" >> $FILE_USRREG
echo "\"Palette1\"=\"326,76,104,118,0,27,465,28,53,233,20,1,132,0\"" >> $FILE_USRREG
echo "\"Palette2\"=\"597,76,104,118,511,27,465,28,53,233,20,1,132,0\"" >> $FILE_USRREG
echo "\"Palette3\"=\"432,76,104,49,984,27,189,28,53,95,8,1,132,0\"" >> $FILE_USRREG
echo "\"Palette4\"=\"491,76,104,72,0,219,281,28,53,141,12,1,148,0\"" >> $FILE_USRREG
echo "\"Palette5\"=\"492,173,104,95,885,102,373,28,53,187,16,1,148,0\"" >> $FILE_USRREG
echo "\"Palette6\"=\"706,76,104,141,0,27,101,141,101,141,1,1,148,0\"" >> $FILE_USRREG
echo "\"Palette7\"=\"162,383,551,58,0,637,551,60,553,58,1,1,24,0\"" >> $FILE_USRREG
echo -e "\"ScrOutput\"=\"001001110000=1W1:>899<>7F001P040S@//210000000000\"" >> $FILE_USRREG
}
# ==============================================================
getRegistryExists()
# --------------------------------------------------------------
# check if registry is valid for the installed program
# 0: not existing
# 1: existing
# ==============================================================
{
REGISTRY_EXISTS=0
# ---------------------
# check user.reg exists
FILE_USRREG="$WINEPREFIX/user.reg"
[ ! -f "$FILE_USRREG" ] && POL_Debug_Fatal "# ERROR: file not found $FILE_USRREG"
# ---------------------
# check system.reg exists
FILE_SYSREG="$WINEPREFIX/system.reg"
[ ! -f "$FILE_SYSREG" ] && POL_Debug_Fatal "# ERROR: file not found $FILE_SYSREG"
# ---------------------
# check user.reg key exists
FOUND="`fgrep '\\TablEdit' $FILE_USRREG`"
[ -z "$FOUND" ] && POL_Debug_Message "# WARNING: key \\TablEdit does not yet exist\n(Wine may still need time to flush the file)\n$FILE_USRREG." && return 0
# ---------------------
# return success
REGISTRY_EXISTS=1
return "$REGISTRY_EXISTS"
}
# ==============================================================
waitsec()
# --------------------------------------------------------------
# sleep function with some debug message
# ==============================================================
{
P1="$1"
[[ -z "$P1" || "$P1" = 0 ]] && return 0
POL_Debug_Message "# let's wait $P1 seconds"
sleep "$P1"
}
# ==============================================================
updateRegistry()
# --------------------------------------------------------------
# update registry with some program settings
# color, windows position, user registration info, language
# The installers registry values do need time to show.
# So, if we do not find them, let's wait a while.
# ==============================================================
{
# - - - - - - - - - - - - - -
# validate registry exists
REGISTRY_EXISTS=0
getRegistryExists
typeset -i iCount=0 iMax=4
while [[ "$REGISTRY_EXISTS" = 0 && $iCount -lt $iMax ]]; do
        iCount=iCount+1
        POL_Debug_Message "# WARNING: waiting for registry $iCount"
        waitsec 4
        getRegistryExists
done
[ "$REGISTRY_EXISTS" = 0 ] && POL_Debug_Message "# WARNING: getRegistryExists - returned 0"
FILE_USRREG="$WINEPREFIX/user.reg"
# - - - - - - - - - - - - - -
# add to registry: Password, UserName, Windows, Language
POL_Debug_Message "# INFO: add registy keys Software\\\\\\\\TablEdit"
echo "[Software\\\\\\\\TablEdit\\\\\\\\TablEdit]" >> $FILE_USRREG
registryProgram
registryWindows
registryLanguage
echo -e "\n" >> $FILE_USRREG
}
# ==============================================================
getVersion()
# --------------------------------------------------------------
# read installed version from system.reg
# if not found, retry some times, then get remote version
# ==============================================================
{
REGISTRY_EXISTS=0
# ----------------------------------
# validate registry
getRegistryExists
typeset -i iCount=0 iMax=4
while [[ "$REGISTRY_EXISTS" = 0 && $iCount -lt $iMax ]]; do
        iCount=iCount+1
        POL_Debug_Message "# WARNING: waiting for registry $iCount"
        waitsec 4
        getRegistryExists
done
[ "$REGISTRY_EXISTS" = 0 ] && POL_Debug_Message "# WARNING: getRegistryExists returned 0"
# ----------------------------------
# get Version Info from system.reg
cd "$WINEPREFIX" || POL_Debug_Fatal "# ERROR: Unable to change directory"
RESULT1=`fgrep -A 1 '"DisplayName"="TablEdit' system.reg  | grep -A 0 '"DisplayVersion"' `
[ ! -z "$RESULT1" ] && VERSION_INSTALLED=`echo $RESULT1 | cut -d '"' -f 4 `
if [ -z "$VERSION_INSTALLED" ]; then
# ----------------------------------
# get remote Version
        POL_Debug_Warning "# WARNING: 'DisplayVersion TablEdit' not found in system.reg"
        getVersionRemote
        POL_Debug_Warning "# WARNING: using remote demo version ($VERSION_REMOTE) as a fallback"
        VERSION_INSTALLED="$VERSION_REMOTE"
fi
# POL_Debug_Message "# VERSION_INSTALLED=$VERSION_INSTALLED"
# VER_LEN="${#VERSION_INSTALLED}"
# POL_Debug_Message "# LEN=$VER_LEN"
}
# ==============================================================
createShortcut()
# --------------------------------------------------------------
# 1. get installed version
# 2. remove previous desktop starter
# 3. remove previous POL shortcut
# 4. add POL shortcut with version info
# 5. add timidity to POL shortcut
# ==============================================================
{
# -------------------
POL_Debug_Message "# get program version"
getVersion
POL_Debug_Message "# VERSION_INSTALLED: $VERSION_INSTALLED"
LAUNCHER="$TITLE"
[ ! -z "$VERSION_INSTALLED" ] && LAUNCHER="$LAUNCHER-v$VERSION_INSTALLED"
POL_Debug_Message "# LAUNCHER: $LAUNCHER"
# -------------------
PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$LAUNCHER"
if [ ! -f "$PATH_SHORTCUT" ];then
        # -------------------
        POL_Debug_Message "# remove any previous desktop starter"
        LINUX_DESKTOP=`xdg-user-dir DESKTOP`
        PATH_SHORTCUT="$LINUX_DESKTOP/$TITLE"
        rm -r "$PATH_SHORTCUT"* 2>/dev/null;
        rm -r $HOME/.local/share/applications/*$TITLE* 2>/dev/null;
        # -------------------
        POL_Debug_Message "# remove previous POL shortcut"
        PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$TITLE"
        rm -r "$PATH_SHORTCUT"* 2>/dev/null;
        # -------------------
        POL_Debug_Message "# create POL shortcut"
        POL_Shortcut "$EXECUTABLE_FILE" "$LAUNCHER" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
        # -------------------
        PATH_SHORTCUT="$POL_USER_ROOT/shortcuts/$LAUNCHER"
fi
[ -f "$PATH_SHORTCUT" ] && MSG="$LAUNCHER installation ok" && POL_Debug_Message "# $MSG"
# ===================
# Add timidity to POL shortcut
POL_Debug_Message "# Adding TiMidity to POL shortcut $PATH_SHORTCUT"
TIMIDITY_APP=`which timidity`
[ -z "$TIMIDITY_APP" ] && POL_Debug_Warning "# no timidity found" && return -1
if [ -z "`fgrep timidity $PATH_SHORTCUT`" ];then
        STARTTIMIDITY="[ -z \"\`pstree | grep timidity\`\" ] \&\& timidity -iA -B2,8 -Os1l -s 44100 \&"
        echo "s+POL_Wine*+$STARTTIMIDITY\nPOL_Wine+g" > $POL_System_TmpDir/SED_CMD
        sed -i -f $POL_System_TmpDir/SED_CMD $PATH_SHORTCUT
fi
return 0
}
######################
# MAIN
IMAGE_TOP="https://tabledit.com/css/img/header1.jpg"
IMAGE_LEFT="https://tabledit.com/ios/TEFpad.ios.logo.175x175-75.jpg"
POL_GetSetupImages --force  "$IMAGE_TOP" "$IMAGE_LEFT" "$TITLE"
POL_SetupWindow_Init
POL_Debug_Init
POL_Debug_Message "# show POL Window"
POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
Set_OS "win7"
# ---------------------
POL_Debug_Message "# create PREFIX environment"
POL_Wine_SelectPrefix "$PREFIX"
POL_System_SetArch "x86"
POL_Wine_PrefixCreate
Set_OS "win7"
POL_System_TmpCreate "$PREFIX"
PWD_OLD=`pwd`
cd "$POL_System_TmpDir" || POL_Debug_Fatal "# ERROR: Unable to change directory"
POL_Debug_Message "# WINEPREFIX: $WINEPREFIX"
POL_Debug_Message "# PREFIX: $PREFIX"
POL_Debug_Message "# POL_System_TmpDir: $POL_System_TmpDir"
# ===================
POL_Debug_Message "# USER CHOICE: registered or preview"
getRegisteredOrPreview
# ---------------------
POL_Debug_Message "# get Installer local or download"
getInstallerLocalDownload
# ===================
POL_Debug_Message "# check TiMidity is available"
TIMIDITY_APP=`which timidity`
if [ -z "$TIMIDITY_APP" ];then
        MSG="For $TITLE to run, we recommend you install TiMidity on your system first.\nPlease open a terminal and execute this command line:\n
        sudo apt-get -y install timidity\n\nThen continue or restart this POL installation.\n"
        POL_SetupWindow_message "$(eval_gettext '$MSG')"
fi
# ===================
POL_Debug_Message "# start wine installation ("$INSTALLER")"
MSG="Installation in progress."
POL_SetupWindow_wait "$(eval_gettext '$MSG')" ""
POL_Wine "$INSTALLER"
POL_Debug_Message "# confirm the executable - tabledit.exe or tableditdemo.exe exists"
FOUND=`find $WINEPREFIX -name "$EXECUTABLE_FILE" -print`
[ -z "$FOUND" ] && POL_Debug_Fatal "# ERROR: $EXECUTABLE_FILE not found in $WINEPREFIX"
# ===================
POL_Debug_Message "# finalize installation"
updateRegistry
createShortcut
POL_System_TmpDelete
POL_SetupWindow_Close
exit

Replies

Dadu042
Saturday 1 May 2021 at 17:52
Script approved.

Edited by VolkerFroehlich
VolkerFroehlich Wednesday 19 August 2020 at 17:23
VolkerFroehlich

Warning

This update has not been approved yet by the team.
Use it at your own risk

logo Try this update

Message

Hi Guys,
I have implemented the improvements and fixed the wine-5.0.2 issue I encountered on Ubuntu 20.04.

The code now runs stable on both Ubuntu 19.10 and 20.04.1.




Differences

@@ -1,121 +1,107 @@
 #!/usr/bin/env playonlinux-bash
 # Date : (2020-08-17 23:57)
-# Last revision : (2020-08-18 02:40)
+# Last revision : (2020-08-19 17:20)
 # Wine version used : 5.0.2
-# Distribution used to test : Ubuntu 19.10
+# Distribution used to test : Ubuntu 19.10, 20.04.1 LTS
 # Author : VolkerFröhlich
 # PlayOnLinux : 4.3.4
 # Script licence : GPL3
 # Program licence : Free/Retail
-##################
-# code ideas:
-# 1-TiMidity installation requires sudo
-#   sudo apt-get install -y timidity
-# 2-create a bash script 'start_tabledit3.sh'
-#   for app launch with TiMidity
-#   echo "timidity -iA -B2,8 -Os1l -s 44100 & playonlinux --run \"TablEdit3\"" > start_tabledit3.sh
-# 3-Patch TablEdit3.desktop
-#   DESKTOP_PATH="`xdg-user-dir DESKTOP`/TablEdit3.desktop"
-#   if [ -f "$DESKTOP_PATH" ] && [ -z "`fgrep start_tabledit3 $DESKTOP_PATH`" ];then
-#        sed -i 's+Exec=/usr/share/playonlinux/playonlinux --run "TablEdit3" %F+#Exec=/usr/share/playonlinux/playonlinux --run "TablEdit3" %F\nExec=start_tabledit3.sh+g' $DESKTOP_PATH
-#   fi
-##################
 [ "$PLAYONLINUX" = "" ] && exit 0
 source "$PLAYONLINUX/lib/sources"
-
+
 TITLE="TablEdit3"
-
+
 PREFIX="tabledit3"
 AUTHOR="VolkerFröhlich"
 EDITOR="Matthieu Leschemelle"
 EDITOR_URL="https://tabledit.com/"
-
+
 EXECUTABLE_FILE="tableditdemo.exe"
 MD5=""
-
+
 # Starting the script
 POL_SetupWindow_Init
-
+
 # Starting debugging API
 POL_Debug_Init
-
+
 #POL_SetupWindow_SetID
 # Open dialogue box
 POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
 Set_OS "win7"
 POL_System_TmpCreate "$PREFIX"
-
+
 POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"
-
+
 cd "$POL_System_TmpDir";
-if [ "$INSTALL_METHOD" = "LOCAL" ]
-then
-    POL_SetupWindow_browse "$(eval_gettext 'Please select the setup file to run.')" "$TITLE"
-    INSTALLER="$APP_ANSWER"
+##############################
+POL_Debug_Message "# select installer"
+if [ "$INSTALL_METHOD" = "LOCAL" ]; then
+	POL_SetupWindow_browse "$(eval_gettext 'Please select the setup file to run.')" "$TITLE"
+	INSTALLER="$APP_ANSWER"
+	POL_Debug_Message "# confirm the executable name"
+	if [ ! "`basename $INSTALLER`" = "tabled32.exe" ]; then
+		EXECUTABLE_FILE="tabledit.exe"
+	fi
+
 elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
-##################
-# code ideas:
-# for registered TablEdit user we need to enter user/password
-# and use wget to download
-#    POL_SetupWindow_question "Are you registered user?" "$TITLE";
-#    if [ "$APP_ANSWER" = "TRUE" ]; then
-#        DOWNLOAD_LINK="https://tabledit.com/secured/tev300.exe"
-#        DOWNLOAD_FILE="tev300.exe"
-#        EXECUTABLE_FILE="tabledit.exe"
-#        CMD_SUDO="sudo wget --user=<user> --password=<password> $DOWNLOAD_LINK"
-#        `$CMD_SUDO`
-#    else
-##################
-DOWNLOAD_LINK=https://tabledit.com/download/tabled32.exe
-DOWNLOAD_FILE=$(basename "https://tabledit.com/download/tabled32.exe")
-POL_Download "$DOWNLOAD_LINK"
-#    fi
-INSTALLER="$POL_System_TmpDir/tabled32.exe"
+	DOWNLOAD_LINK=https://tabledit.com/download/tabled32.exe
+	DOWNLOAD_FILE=$(basename "https://tabledit.com/download/tabled32.exe")
+	POL_Download "$DOWNLOAD_LINK"
+	INSTALLER="$POL_System_TmpDir/tabled32.exe"
 fi
-
-# Setting prefix path
+
+##############################
+POL_Debug_Message "# Set prefix"
 POL_Wine_SelectPrefix "$PREFIX"
+POL_Debug_Message "# setting WINEARCH to win32"
+POL_System_SetArch "x86"
 POL_Wine_PrefixCreate

-POL_SetupWindow_message "$(eval_gettext 'For $TITLE to run, you should make sure TiMidity is installed on your system:\n sudo apt-get -y install timidity')"
-
+##############################
+POL_Debug_Message "# check TiMidity is available"
+TIMIDITY_APP=`which timidity`
+if [ -z "$TIMIDITY_APP" ];then
+	MSG="For $TITLE to run, we recommend you install TiMidity on your system first.\nPlease open a terminal and execute this command line:\n
+	sudo apt-get -y install timidity\n\nThen continue or restart this POL installation.\n"
+	POL_SetupWindow_message "$(eval_gettext '$MSG')"
+fi

-POL_SetupWindow_wait "$(eval_gettext 'Installation in progress.\n Do NOT launch the program and first let finish this script.')" "$TITLE"
-
-##################
-# HACK: START
-#       We create the shortcut based on a dummy exe.
-#       This avoids this script ends prematurely,
-#       if the user is launching the executable during installation
-#
-# manually create the TablEdit progamm directory
-cd "$HOME/.PlayOnLinux/wineprefix/$PREFIX/drive_c" 2>/dev/null;
-mkdir "Program Files (x86)" 2>/dev/null;
-cd "Program Files (x86)" 2>/dev/null;
-mkdir "TablEdit" 2>/dev/null;
-cd "TablEdit" 2>/dev/null;
-# copy the dummy file
-cp "$INSTALLER" "./$EXECUTABLE_FILE" 2>/dev/null;
-# create the shortcut
-POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
-# remove the TablEdit progamm directory
-cd .. 2>/dev/null;
-rm -r "TablEdit" 2>/dev/null;
-cd "$POL_System_TmpDir";
-# HACK: END
-##################
+##############################
+POL_Debug_Message "# start wine installation"
+MSG="Installation in progress."
+POL_SetupWindow_wait "$(eval_gettext '$MSG')" "$TITLE"

 POL_Wine "$INSTALLER"

-##################
-# The code below may never be reached.
-# If the application launches directly
-# during install, this scripts exits.
+POL_Debug_Message "# confirm the executable exists"
+if [ -z `find $WINEPREFIX -name "$EXECUTABLE_FILE" -print` ]; then
+	POL_Debug_Fatal "$EXECUTABLE_FILE not found in $WINEPREFIX"
+fi

 POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
-
-POL_System_TmpDelete

+##############################
+# Add timidity to POL shortcut
+TIMIDITY_APP=`which timidity`
+if [ ! -z "$TIMIDITY_APP" ];then
+	POL_TITLE_PATH="$POL_USER_ROOT/shortcuts/$TITLE"
+	POL_Debug_Message "# Adding TiMidity to POL shortcut $POL_TITLE_PATH"
+	if [ ! -f "$POL_TITLE_PATH" ];then
+		POL_Debug_Warning "file not found: $POL_TITLE_PATH"
+	else
+		if [ -z "`fgrep timidity $POL_TITLE_PATH`" ];then
+			STARTTIMIDITY="[ -z \"\`pstree | grep timidity\`\" ] \&\& timidity -iA -B2,8 -Os1l -s 44100 \&"
+			echo "s+POL_Wine*+$STARTTIMIDITY\nPOL_Wine+g" > $POL_System_TmpDir/SED_CMD
+			sed -i -f $POL_System_TmpDir/SED_CMD $POL_TITLE_PATH
+		fi
+	fi
+fi
+
+##############################
+POL_Debug_Message "# delete temp directory"
+POL_System_TmpDelete
+
 POL_SetupWindow_Close
 exit
-

New source code

#!/usr/bin/env playonlinux-bash
# Date : (2020-08-17 23:57)
# Last revision : (2020-08-19 17:20)
# Wine version used : 5.0.2
# Distribution used to test : Ubuntu 19.10, 20.04.1 LTS
# Author : VolkerFröhlich
# PlayOnLinux : 4.3.4
# Script licence : GPL3
# Program licence : Free/Retail
[ "$PLAYONLINUX" = "" ] && exit 0
source "$PLAYONLINUX/lib/sources"

TITLE="TablEdit3"

PREFIX="tabledit3"
AUTHOR="VolkerFröhlich"
EDITOR="Matthieu Leschemelle"
EDITOR_URL="https://tabledit.com/"

EXECUTABLE_FILE="tableditdemo.exe"
MD5=""

# Starting the script
POL_SetupWindow_Init

# Starting debugging API
POL_Debug_Init

#POL_SetupWindow_SetID
# Open dialogue box
POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
Set_OS "win7"
POL_System_TmpCreate "$PREFIX"

POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"

cd "$POL_System_TmpDir";
##############################
POL_Debug_Message "# select installer"
if [ "$INSTALL_METHOD" = "LOCAL" ]; then
        POL_SetupWindow_browse "$(eval_gettext 'Please select the setup file to run.')" "$TITLE"
        INSTALLER="$APP_ANSWER"
        POL_Debug_Message "# confirm the executable name"
        if [ ! "`basename $INSTALLER`" = "tabled32.exe" ]; then
                EXECUTABLE_FILE="tabledit.exe"
        fi

elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
        DOWNLOAD_LINK=https://tabledit.com/download/tabled32.exe
        DOWNLOAD_FILE=$(basename "https://tabledit.com/download/tabled32.exe")
        POL_Download "$DOWNLOAD_LINK"
        INSTALLER="$POL_System_TmpDir/tabled32.exe"
fi

##############################
POL_Debug_Message "# Set prefix"
POL_Wine_SelectPrefix "$PREFIX"
POL_Debug_Message "# setting WINEARCH to win32"
POL_System_SetArch "x86"
POL_Wine_PrefixCreate

##############################
POL_Debug_Message "# check TiMidity is available"
TIMIDITY_APP=`which timidity`
if [ -z "$TIMIDITY_APP" ];then
        MSG="For $TITLE to run, we recommend you install TiMidity on your system first.\nPlease open a terminal and execute this command line:\n
        sudo apt-get -y install timidity\n\nThen continue or restart this POL installation.\n"
        POL_SetupWindow_message "$(eval_gettext '$MSG')"
fi

##############################
POL_Debug_Message "# start wine installation"
MSG="Installation in progress."
POL_SetupWindow_wait "$(eval_gettext '$MSG')" "$TITLE"

POL_Wine "$INSTALLER"

POL_Debug_Message "# confirm the executable exists"
if [ -z `find $WINEPREFIX -name "$EXECUTABLE_FILE" -print` ]; then
        POL_Debug_Fatal "$EXECUTABLE_FILE not found in $WINEPREFIX"
fi

POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"

##############################
# Add timidity to POL shortcut
TIMIDITY_APP=`which timidity`
if [ ! -z "$TIMIDITY_APP" ];then
        POL_TITLE_PATH="$POL_USER_ROOT/shortcuts/$TITLE"
        POL_Debug_Message "# Adding TiMidity to POL shortcut $POL_TITLE_PATH"
        if [ ! -f "$POL_TITLE_PATH" ];then
                POL_Debug_Warning "file not found: $POL_TITLE_PATH"
        else
                if [ -z "`fgrep timidity $POL_TITLE_PATH`" ];then
                        STARTTIMIDITY="[ -z \"\`pstree | grep timidity\`\" ] \&\& timidity -iA -B2,8 -Os1l -s 44100 \&"
                        echo "s+POL_Wine*+$STARTTIMIDITY\nPOL_Wine+g" > $POL_System_TmpDir/SED_CMD
                        sed -i -f $POL_System_TmpDir/SED_CMD $POL_TITLE_PATH
                fi
        fi
fi

##############################
POL_Debug_Message "# delete temp directory"
POL_System_TmpDelete

POL_SetupWindow_Close
exit

Replies

Dadu042
Thursday 20 August 2020 at 9:32
script approved.
Dadu042 Tuesday 18 August 2020 at 6:03
Dadu042

Warning

This update has not been approved yet by the team.
Use it at your own risk

logo Try this update

Differences

@@ -0,0 +1,121 @@
+#!/usr/bin/env playonlinux-bash
+# Date : (2020-08-17 23:57)
+# Last revision : (2020-08-18 02:40)
+# Wine version used : 5.0.2
+# Distribution used to test : Ubuntu 19.10
+# Author : VolkerFröhlich
+# PlayOnLinux : 4.3.4
+# Script licence : GPL3
+# Program licence : Free/Retail
+##################
+# code ideas:
+# 1-TiMidity installation requires sudo
+#   sudo apt-get install -y timidity
+# 2-create a bash script 'start_tabledit3.sh'
+#   for app launch with TiMidity
+#   echo "timidity -iA -B2,8 -Os1l -s 44100 & playonlinux --run \"TablEdit3\"" > start_tabledit3.sh
+# 3-Patch TablEdit3.desktop
+#   DESKTOP_PATH="`xdg-user-dir DESKTOP`/TablEdit3.desktop"
+#   if [ -f "$DESKTOP_PATH" ] && [ -z "`fgrep start_tabledit3 $DESKTOP_PATH`" ];then
+#        sed -i 's+Exec=/usr/share/playonlinux/playonlinux --run "TablEdit3" %F+#Exec=/usr/share/playonlinux/playonlinux --run "TablEdit3" %F\nExec=start_tabledit3.sh+g' $DESKTOP_PATH
+#   fi
+##################
+[ "$PLAYONLINUX" = "" ] && exit 0
+source "$PLAYONLINUX/lib/sources"
+
+TITLE="TablEdit3"
+
+PREFIX="tabledit3"
+AUTHOR="VolkerFröhlich"
+EDITOR="Matthieu Leschemelle"
+EDITOR_URL="https://tabledit.com/"
+
+EXECUTABLE_FILE="tableditdemo.exe"
+MD5=""
+
+# Starting the script
+POL_SetupWindow_Init
+
+# Starting debugging API
+POL_Debug_Init
+
+#POL_SetupWindow_SetID
+# Open dialogue box
+POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
+Set_OS "win7"
+POL_System_TmpCreate "$PREFIX"
+
+POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"
+
+cd "$POL_System_TmpDir";
+if [ "$INSTALL_METHOD" = "LOCAL" ]
+then
+    POL_SetupWindow_browse "$(eval_gettext 'Please select the setup file to run.')" "$TITLE"
+    INSTALLER="$APP_ANSWER"
+elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
+##################
+# code ideas:
+# for registered TablEdit user we need to enter user/password
+# and use wget to download
+#    POL_SetupWindow_question "Are you registered user?" "$TITLE";
+#    if [ "$APP_ANSWER" = "TRUE" ]; then
+#        DOWNLOAD_LINK="https://tabledit.com/secured/tev300.exe"
+#        DOWNLOAD_FILE="tev300.exe"
+#        EXECUTABLE_FILE="tabledit.exe"
+#        CMD_SUDO="sudo wget --user=<user> --password=<password> $DOWNLOAD_LINK"
+#        `$CMD_SUDO`
+#    else
+##################
+DOWNLOAD_LINK=https://tabledit.com/download/tabled32.exe
+DOWNLOAD_FILE=$(basename "https://tabledit.com/download/tabled32.exe")
+POL_Download "$DOWNLOAD_LINK"
+#    fi
+INSTALLER="$POL_System_TmpDir/tabled32.exe"
+fi
+
+# Setting prefix path
+POL_Wine_SelectPrefix "$PREFIX"
+POL_Wine_PrefixCreate
+
+POL_SetupWindow_message "$(eval_gettext 'For $TITLE to run, you should make sure TiMidity is installed on your system:\n sudo apt-get -y install timidity')"
+
+
+POL_SetupWindow_wait "$(eval_gettext 'Installation in progress.\n Do NOT launch the program and first let finish this script.')" "$TITLE"
+
+##################
+# HACK: START
+#       We create the shortcut based on a dummy exe.
+#       This avoids this script ends prematurely,
+#       if the user is launching the executable during installation
+#
+# manually create the TablEdit progamm directory
+cd "$HOME/.PlayOnLinux/wineprefix/$PREFIX/drive_c" 2>/dev/null;
+mkdir "Program Files (x86)" 2>/dev/null;
+cd "Program Files (x86)" 2>/dev/null;
+mkdir "TablEdit" 2>/dev/null;
+cd "TablEdit" 2>/dev/null;
+# copy the dummy file
+cp "$INSTALLER" "./$EXECUTABLE_FILE" 2>/dev/null;
+# create the shortcut
+POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
+# remove the TablEdit progamm directory
+cd .. 2>/dev/null;
+rm -r "TablEdit" 2>/dev/null;
+cd "$POL_System_TmpDir";
+# HACK: END
+##################
+
+POL_Wine "$INSTALLER"
+
+##################
+# The code below may never be reached.
+# If the application launches directly
+# during install, this scripts exits.
+
+POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
+
+POL_System_TmpDelete
+
+POL_SetupWindow_Close
+exit
+

New source code

#!/usr/bin/env playonlinux-bash
# Date : (2020-08-17 23:57)
# Last revision : (2020-08-18 02:40)
# Wine version used : 5.0.2
# Distribution used to test : Ubuntu 19.10
# Author : VolkerFröhlich
# PlayOnLinux : 4.3.4
# Script licence : GPL3
# Program licence : Free/Retail
##################
# code ideas:
# 1-TiMidity installation requires sudo
#   sudo apt-get install -y timidity
# 2-create a bash script 'start_tabledit3.sh'
#   for app launch with TiMidity
#   echo "timidity -iA -B2,8 -Os1l -s 44100 & playonlinux --run \"TablEdit3\"" > start_tabledit3.sh
# 3-Patch TablEdit3.desktop
#   DESKTOP_PATH="`xdg-user-dir DESKTOP`/TablEdit3.desktop"
#   if [ -f "$DESKTOP_PATH" ] && [ -z "`fgrep start_tabledit3 $DESKTOP_PATH`" ];then
#        sed -i 's+Exec=/usr/share/playonlinux/playonlinux --run "TablEdit3" %F+#Exec=/usr/share/playonlinux/playonlinux --run "TablEdit3" %F\nExec=start_tabledit3.sh+g' $DESKTOP_PATH
#   fi
##################
[ "$PLAYONLINUX" = "" ] && exit 0
source "$PLAYONLINUX/lib/sources"

TITLE="TablEdit3"

PREFIX="tabledit3"
AUTHOR="VolkerFröhlich"
EDITOR="Matthieu Leschemelle"
EDITOR_URL="https://tabledit.com/"

EXECUTABLE_FILE="tableditdemo.exe"
MD5=""

# Starting the script
POL_SetupWindow_Init

# Starting debugging API
POL_Debug_Init

#POL_SetupWindow_SetID
# Open dialogue box
POL_SetupWindow_presentation "$TITLE" "$EDITOR" "$EDITOR_URL" "$AUTHOR" "$PREFIX"
Set_OS "win7"
POL_System_TmpCreate "$PREFIX"

POL_SetupWindow_InstallMethod "LOCAL,DOWNLOAD"

cd "$POL_System_TmpDir";
if [ "$INSTALL_METHOD" = "LOCAL" ]
then
    POL_SetupWindow_browse "$(eval_gettext 'Please select the setup file to run.')" "$TITLE"
    INSTALLER="$APP_ANSWER"
elif [ "$INSTALL_METHOD" = "DOWNLOAD" ]; then
##################
# code ideas:
# for registered TablEdit user we need to enter user/password
# and use wget to download
#    POL_SetupWindow_question "Are you registered user?" "$TITLE";
#    if [ "$APP_ANSWER" = "TRUE" ]; then
#        DOWNLOAD_LINK="https://tabledit.com/secured/tev300.exe"
#        DOWNLOAD_FILE="tev300.exe"
#        EXECUTABLE_FILE="tabledit.exe"
#        CMD_SUDO="sudo wget --user=<user> --password=<password> $DOWNLOAD_LINK"
#        `$CMD_SUDO`
#    else
##################
DOWNLOAD_LINK=https://tabledit.com/download/tabled32.exe
DOWNLOAD_FILE=$(basename "https://tabledit.com/download/tabled32.exe")
POL_Download "$DOWNLOAD_LINK"
#    fi
INSTALLER="$POL_System_TmpDir/tabled32.exe"
fi

# Setting prefix path
POL_Wine_SelectPrefix "$PREFIX"
POL_Wine_PrefixCreate

POL_SetupWindow_message "$(eval_gettext 'For $TITLE to run, you should make sure TiMidity is installed on your system:\n sudo apt-get -y install timidity')"


POL_SetupWindow_wait "$(eval_gettext 'Installation in progress.\n Do NOT launch the program and first let finish this script.')" "$TITLE"

##################
# HACK: START
#       We create the shortcut based on a dummy exe.
#       This avoids this script ends prematurely,
#       if the user is launching the executable during installation
#
# manually create the TablEdit progamm directory
cd "$HOME/.PlayOnLinux/wineprefix/$PREFIX/drive_c" 2>/dev/null;
mkdir "Program Files (x86)" 2>/dev/null;
cd "Program Files (x86)" 2>/dev/null;
mkdir "TablEdit" 2>/dev/null;
cd "TablEdit" 2>/dev/null;
# copy the dummy file
cp "$INSTALLER" "./$EXECUTABLE_FILE" 2>/dev/null;
# create the shortcut
POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"
# remove the TablEdit progamm directory
cd .. 2>/dev/null;
rm -r "TablEdit" 2>/dev/null;
cd "$POL_System_TmpDir";
# HACK: END
##################

POL_Wine "$INSTALLER"

##################
# The code below may never be reached.
# If the application launches directly
# during install, this scripts exits.

POL_Shortcut "$EXECUTABLE_FILE" "$TITLE" "" "" "AudioVideo;Audio;AudioVideoEditing;Music;"

POL_System_TmpDelete

POL_SetupWindow_Close
exit

Replies

This site allows content generated by members, and we promptly remove any content that infringes copyright according to our Terms of Service. To report copyright infringement, please send a notice to dmca-notice@playonlinux.com
